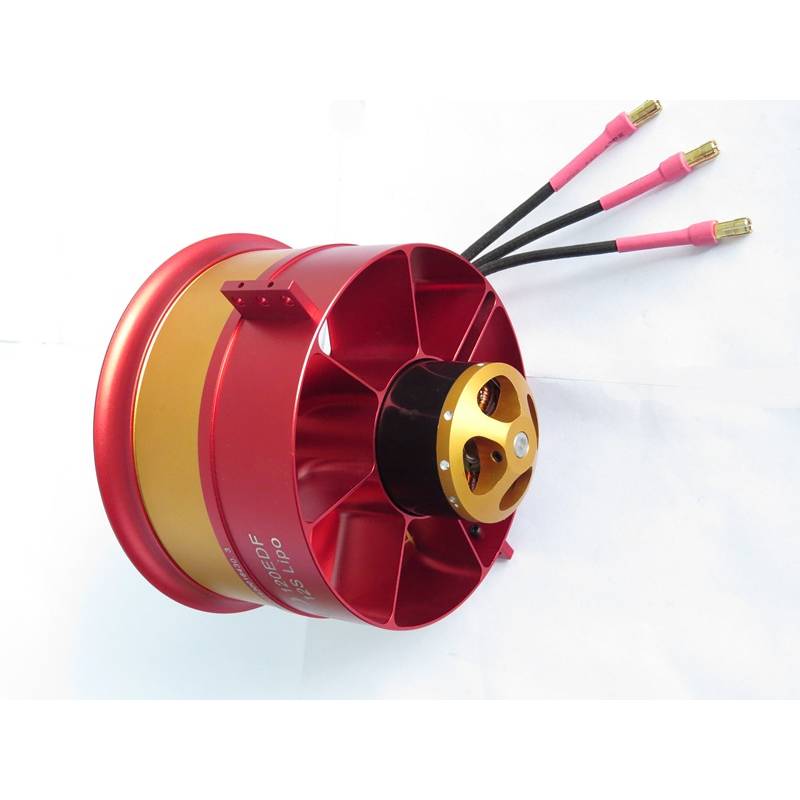

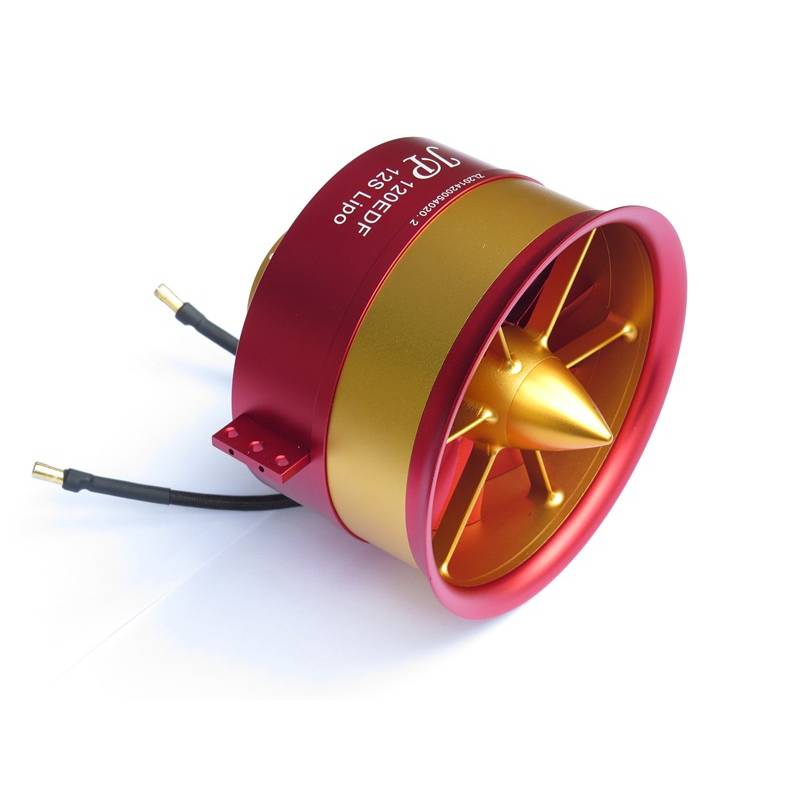

This EDF was installed but never used, pretty much new. It will come with motor ready to install. Open to very sensible offers.

Description
Jingpin Hobby uses High grade aluminium alloy material for highest rigid structure and lightest weight.
The shroud acts as a heat sink, removing heat from the motor. This design creates a more efficiently running motor and will provide peak performance while extending the lifespan of the motor.
The highly rigid structure design is capable of running up to high RPM to produce extremely high efflux velocity for maximum speed and efficiency.
Anti Blade flying out design,the Blades be safety kept in the shroud and without damage.It is the best replacement for your plastic or carbon shroud if you want to have a safety EDF fan.
Each metal blade is precisely made of High Grade Aluminum alloy to generate jet airflow. Every blade has been tested for 8 hours of metal fatigue test as well as in the dynamic balance machine for calibration, making it bring a better and safer user experience for every RC fan.
You could assemble our EDF system with any other motor without losing dynamic balance effect.
The motor and fan unit comes assembled and balanced from the factory.

Measures
About the above measures : they have been read on the test bench with the intake lip on the unit. The measures have been made using a bench stabilized power source. Results may changed depening upon your equipment and situation.
Description / LiPo 12s (44.4v) 12s (48.0v)
Thrust: 7.5 kg 8.62 kg
Current: 112 A 127 A
Power: 4972 W 6096 W
Recommended ESC: 150 A / HV 150 A / HV
Recommended battery: 5000mAh 40C 5000mAh 40C
