Good condition and perfect working order.

Collection from Burton-on-Trent or I can post at cost.

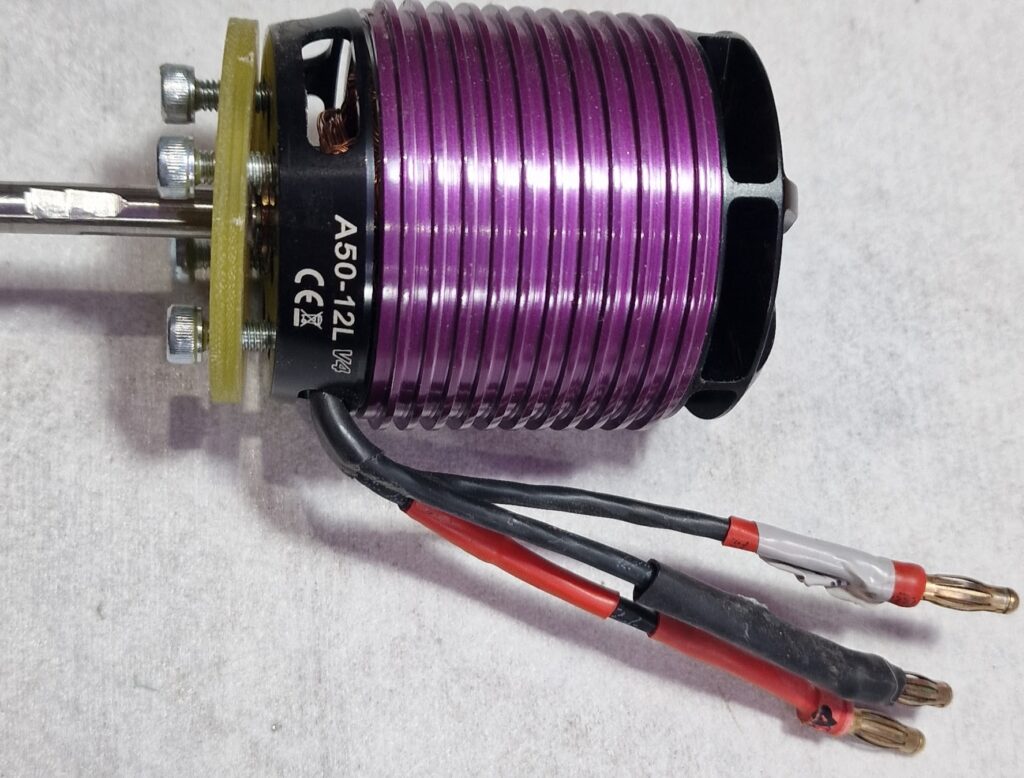

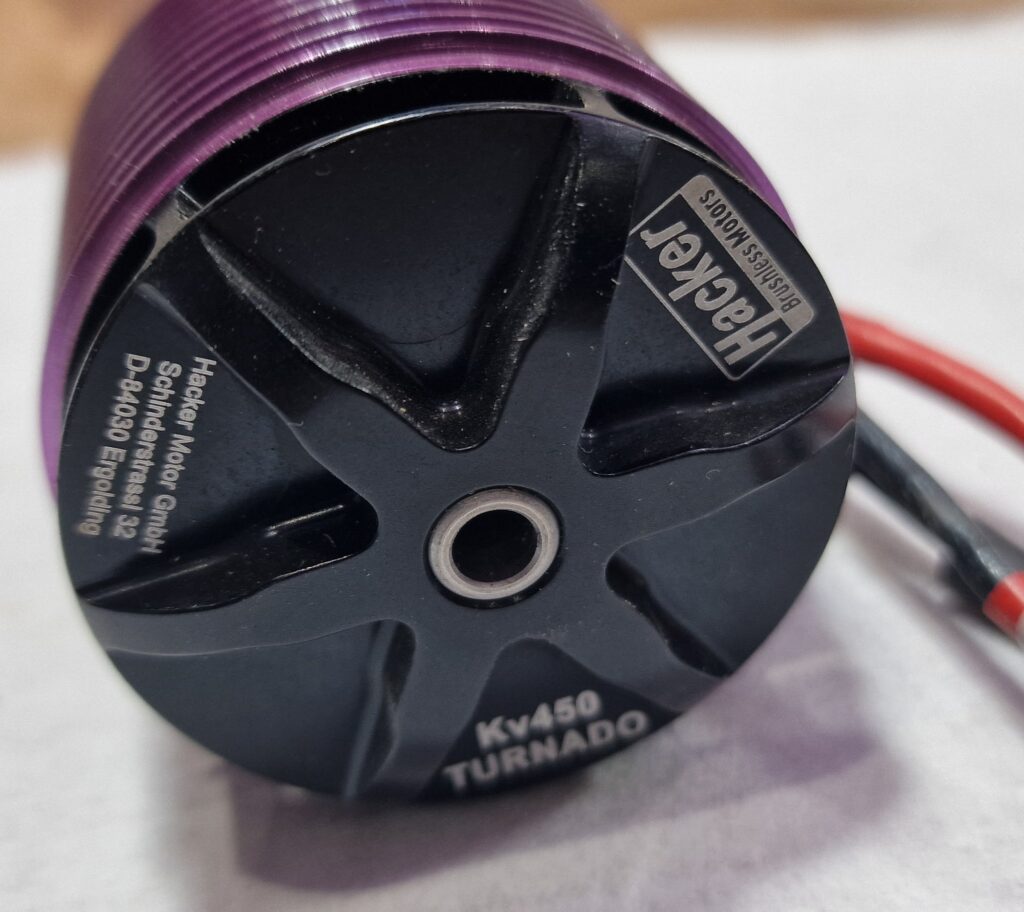

The new Turnado V4 fits seamlessly into our program for helicopters. It convinces with significant power reserves and by lower power consumption. The Turnado V4 version offers even better performance than its predecessor.

Helicopters 10S to 12S R/C models with approx. 600 to 800 millimetres (24 to 31.5 inches) rotor blade length, 3D flight.
Gliders with approx. 12 kilogram (26.5lb) take-off weight. 6S RFM 13×10, controller Master Mezon 120 lite for current consumption during flight of approx. 60 to 65A.
Gliders with approx. 16 kilogram (35lb) take-off weight. 6S RFM 14×10, controller Master Mezon 120 lite for current consumption during flight of approx. 70 to 75A.

Antriebsvorschlag
Propeller 13″-14″
Specifications
max. power range [W] (max.15 sec.) 4000
Poles 10
Turns 12
Idle current (I0) at 8.4V [A] 1.2
Internal resistance (Ri) [Ohm] 0.019
Output shaft 6
RPM max. 25000
Recommended timing [°] 15 – 20
Switching Frequency [kHz] 8
Controller recommendation [A] (depending on setup) 80 – 130
Idle speed per volt (kv) 450rpm
max. current [A] 80
Dimensions and weight
Weight [g] 445
Length [mm]/[in] 61
Outer diameter [mm]/[in] 51.5
Shaft diameter [mm]/[in] 6 (internal: 8)
Delivery contents
Prop Adapter Ja
Mounting cross Nein
Gold plug mm (recommended) 4
Backmount mountable Optional
Front mountable Ja
