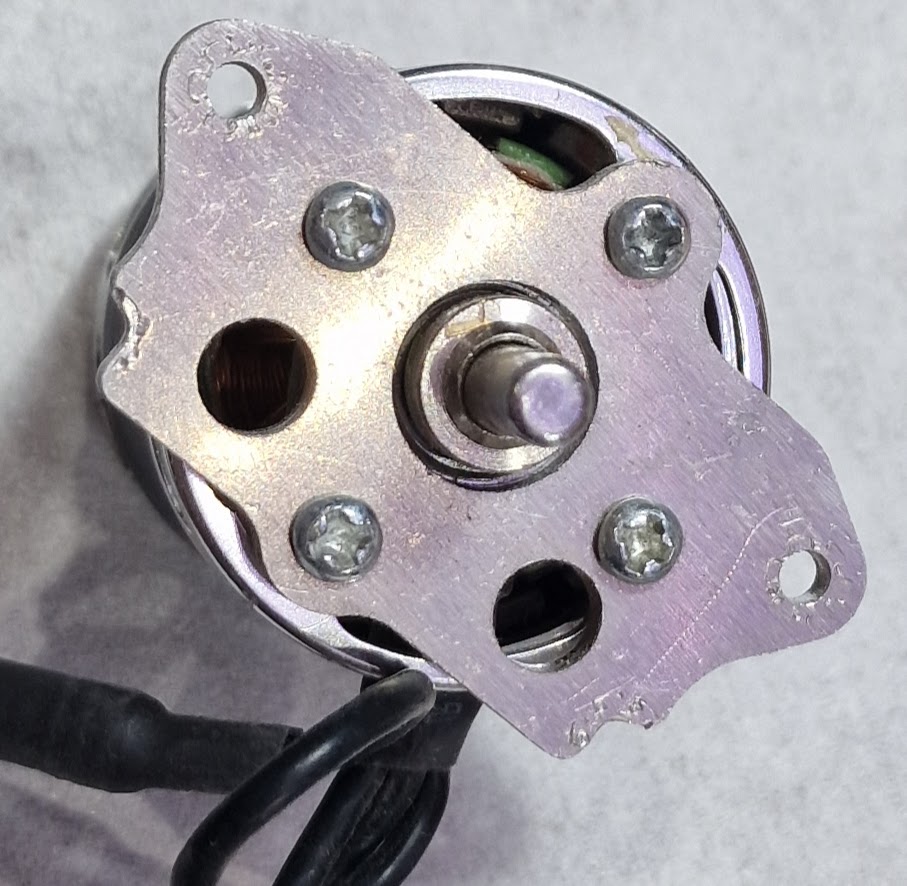

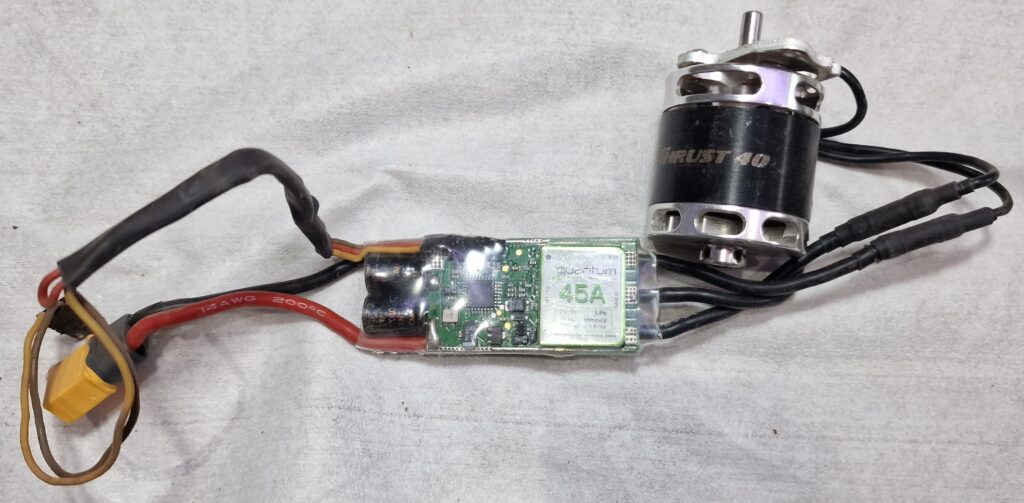

Precision Aerobatics Thrust 40 Brushless motor with 45A ESC.

Good condition and perfect working order.

Collection from Burton-on-Trent or I can post at cost.

The development of our new PA Thrust® motors has followed our traditional design philosophy employed in our
aircraft; which is doing things better. Thrust® motor is one of the coolest running high performance, high-torque
and high efficiency brushless motor ever produced to date. The design incorporates our latest innovation,
Rotorkool® which keeps the stator core material, the low resistance windings, highly permeable stator plates, high
quality NMB Japan triple bearings and powerful neodymium magnets at optimum operating temperatures regardless
of duration or the number of consecutive flights made*.
*provided sufficient airflow is permitted.
Motor specs
Outside Diameter 37.2mm
Length 41mm
Weight (gr/oz) 140gr / 4.9oz
Motor Shaft Dia. 5.0mm
Mounting Bolts Dia. M3
Max efficiency Current A * 35 A
Peak current A (15 sec)* 45 A
Battery pack range ** 2~4 LiPo / 6-12 NiCd
Poles 14
KV rpm/V 850kv
Recommended ESC PA Quantum 45
Peak Watts 500 watts
* Unrestricted airflow and air scoops are mandatory to ensure long service life and long term performance
consistency. Extended Continuous Operation without the required cooling provisions may be detrimental to the
coils and magnets and will void warranty.

** PA 3cells (11.1V) 2200mAh V2 pack is recommended. With 4 cells pack the chosen propeller must fit within the
motor’s limits (current drawn).
Propeller selection with PA2200mah 20C-40C V2 Packs
APC 12x6E – Good lower range general sport propeller for the T40 with long flight duration.

VOX 13X6.5 – Good lower range overall propeller for aerobatics and basic 3D flying. It has very similar
characteristics to the APC 13X6.5E with a little lower flight speed but with higher efficiency, longer
flight duration and additional thrust. Good alternative with a sexy wood finish and lighter weight
(faster spool up). It has a very nice prop sound as well.

VOX 13×7 – Offers a little more flight speed with less thrust than the VOX 13X6.5
VOX 13×8 – Excellent choice for IMAC and precision aerobatic flyers due to the faster constant flight speed.
VOX 14X7 – Perfect match to the Thrust 40! Excellent higher range propeller for 3D, freestyle aerobatics
and pattern flying. Excellent balance of thrust and speed that allows a wider performance
envelope for aggressive flying such as insane tumbles, walls, hard snaps, spins and fast KE spins.
Double check the integrity of your plane’s motor box to ensure it can withstand the increased
loads. This is THE prop for the Ultimate AMR especially for low and slow 3D. Even though it is
much larger prop than the APC 13×6.5E it draws lower amps and produces a whopping 90.56oz of
thrust!! This clearly demonstrates the efficiency and advantage of the VOX over the APC.
Adequate airflow to cool down the motor and ESC is mandatory, as well as strict throttle
management.
APC 14X7E – This is the highest range propeller for the T40 and a good overall prop for 3D and freestyle. A little
faster flight speed BUT much lower efficiency (shorter flight duration) than the VOX 14×7 with less
thrust, therefore we recommend the VOX 14×7 as a better alternative. NOTE: Adequate airflow to
cool down the motor and ESC is mandatory, as well as strict throttle management. Not
recommended for the Ultimate AMR.
